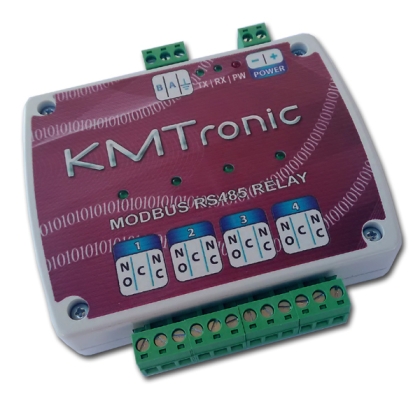

RS485 4 Channel Relay Controller, ModBus RTU with clips for DIN mount rail
-13%
Price excl. tax:
€27.00
Price inc. tax:
€32.40
List Price:
€37.20
Amounts excluding tax:
Price:
€27.00
List Price:
€31.00
Discount:
€4.00 (12.90%)
-
Code:R4S4CRMD
-
Weight:0.160 Kgs
RS485 4 Channel ModBus Relay Controller
Estimated Shipping
starts at
€18.00
Features:
Board number manually through a DIP Switch placed near RS485 connector.
Required power:
12VDC / minimum 600 mA.
Specifications:
Relays have Normally Open (NO) and Normally Closed (NC) Contacts each capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A
Communication Parameters:
8 Data, 1 Stop, No Parity
Baud rate : 9600
MODBUS Commands:
01 (0x01) Read Coils
05 (0x05) Write Single Coil
Coil 0000: Relay 01
Coil 0001: Relay 02
Coil 0002: Relay 03
Coil 0003: Relay 04
