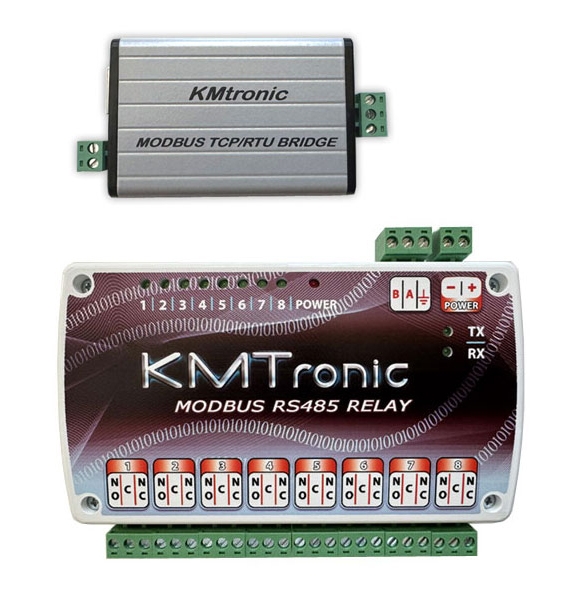

LAN ModBus/TCP converter with RS485 Eight Channel Relay Board SET
-
Code:MDB_SET_01
-
Weight:0.276 Kgs
LAN ModBus/TCP converter with RS485 Eight Channel Relay Board SET
Estimated Shipping

Complete including:
- 1 x LAN ModBus/TCP to RS485 converter
- 1 x RS485 8 channel relay board
Manufacturer:
KMTronic LTD
Features:

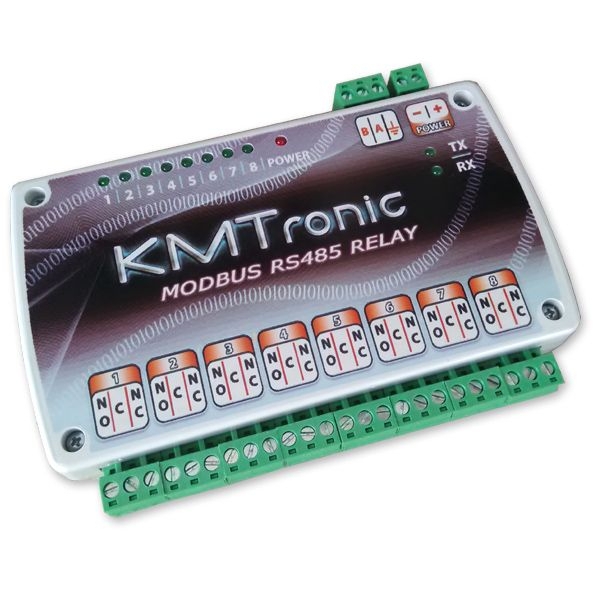

RELAY board
- Each relay has an LED to indicate when it is operated.
- Relay outputs can be used to turn ON/OFF lights, motors and other devices.

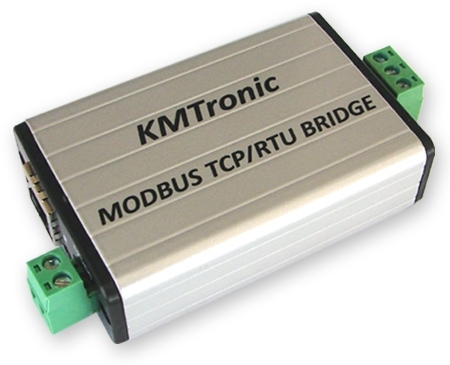

LAN ModBus/TCP converter
- Converts Modbus RS485 RTU into Modbus TCP/IP over Ethernet
- Connect up to 32 Modbus RS485 devices to an Ethernet network
Relays pecifications:
Relays have Normally Open (NO) and
Normally Closed (NC) Contacts each capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A
Supply:
Requires external 12 volt DC / 1000mA power supply
LAN converter default:
IP address: 192.168.1.199
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.1
Default username/password: admin, admin
Protocol - MODBUS TCP
TCP Port - 502
Serial RS485 Protocol - MODBUS RTU
RS-485 Sugnals - A(Data+), B(Data-), GND
Baudrate - 1200 bps to 115.2 Kbps
Reset to Default Settings:
Hold Reset button for 10 seconds
MODBUS Commands:
01 (0x01) Read Coils
05 (0x05) Write Single Coil
15 (0x0F) Write Multiple Coils
Coil 0000: Relay 01
Coil 0001: Relay 02
Coil 0002: Relay 03
Coil 0003: Relay 04
Coil 0004: Relay 05
Coil 0005: Relay 06
Coil 0006: Relay 07
Coil 0007: Relay 08
