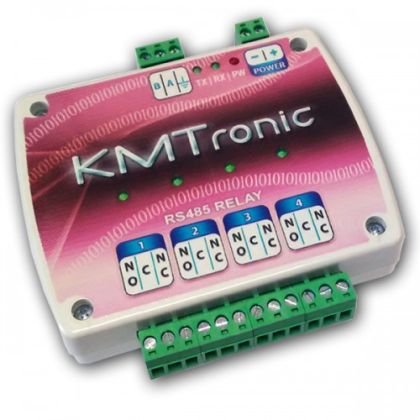

RS485 Relay Controller - Four Channel with Clips for DIN Mount Rail
-13%
Price excl. tax:
€27.00
Price inc. tax:
€32.40
List Price:
€37.20
Amounts excluding tax:
Price:
€27.00
List Price:
€31.00
Discount:
€4.00 (12.90%)
-
Code:R4S4CRD
-
Weight:0.160 Kgs
RS485 4 Channel Relay Controller
With Clips for DIN Mount Rail
Estimated Shipping
starts at
€18.00
Features:
The board is fully compatible with the 8 relay version.
This version has an option to change the BOARD NUMBER (from 01 to 15) manually through a DIP Switch placed near RS485 connector.
Required power:
12VDC / minimum 600 mA.
Model:
R4S4CRD
Specifications:
Relays have Normally Open (NO) and Normally Closed (NC) Contacts each capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A
Communication Parameters:
8 Data, 1 Stop, No Parity
Baud rate : 9600
Commands:
Relay commands:
OFF command : FF xx 00 (HEX) or 255 xx 0 (DEC)
ON command : FF xx 01 (HEX) or 255 xx 1 (DEC)
