Home LAN Relay Controllers WEB LAN Four Channels Relay Ethernet IP Controller with Clips for DIN Mount Rail

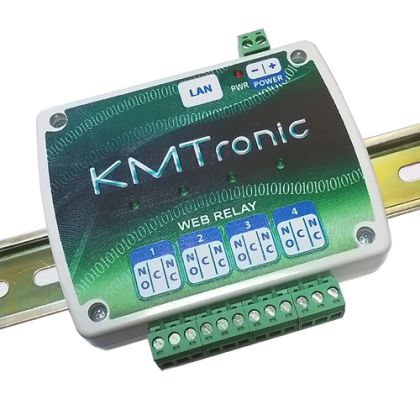

WEB LAN Four Channels Relay Ethernet IP Controller with Clips for DIN Mount Rail

Price excl. tax: €56.00
Price inc. tax: €67.20
  • Code:
    W4CRD
  • Weight:
    0.183 Kgs

WEB Relay board is developed for control via Web Browser - Windows Explorer, Mozilla, Google Chrome...
For software control we recommend UDP version

Estimated Shipping

starts at €18.00

We have 2847 in stock

Add to wishlist
- +
Brand:

NOTE:
WEB Relay board is developed for control via Web Browser - Windows Explorer, Mozilla, Google Chrome...
For software control we recommend UDP version







A general purpose LAN Relay controller.

  Features:
• Fully assembled and tested.
Each relay has an LED to indicate when it is operated.
Relay outputs can be used to turn ON/OFF lights, motors and other devices.



  Model:
W4CR



  Complete including:
-
One LAN Four relay controller

  Required power:
12VDC / 1000 mA.



  Specifications:
Relays have Normally Open (NO) and
Normally Closed (NC) Contacts each capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A


  Dimensions:
110 mm / 55 mm / 25 mm

  Drivers:
IP address: 192.168.1.199
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.1
Username: admin
Password: admin


  Reset to Default Settings:
Hold Reset button for 10 seconds


  Installation:
info.KMtronic.com/LAN-2-Channels-WEB-Relay-Board.html



  PLC 4 Relay Control - Application for And
PLC 4 Relay Control - Apps on Google Play









  More information:
info.KMtronic.com/LAN-2-Channels-WEB-Relay-BOX.html


  Software examples:
info.KMtronic.com/LAN-Relays.html
