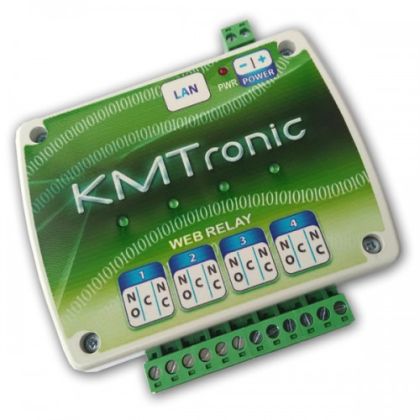

WEB LAN Four Channels Relay Ethernet IP Controller

NOTE:
WEB Relay board is developed for control via Web Browser - Windows Explorer, Mozilla, Google Chrome...
For software control we recommend UDP version

A general purpose LAN Relay controller.

  Features:
• Fully assembled and tested.
• Each relay has an LED to indicate when it is operated.
• Relay outputs can be used to turn ON/OFF lights, motors and other devices.

  Model:
W4CR

  Complete including:
- One LAN Four relay controller

  Required power:
12VDC / 1000 mA.

  Specifications:
Relays have Normally Open (NO) and
Normally Closed (NC) Contacts each capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A

  Dimensions:
110 mm / 55 mm / 25 mm

  Drivers:
IP address: 192.168.1.199
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.1
Username: admin
Password: admin

  Reset to Default Settings:
Hold Reset button for 10 seconds

  Installation:
info.KMtronic.com/LAN-2-Channels-WEB-Relay-Board.html

  PLC 4 Relay Control - Application for And
PLC 4 Relay Control - Apps on Google Play

  More information:
info.KMtronic.com/LAN-2-Channels-WEB-Relay-BOX.html

  Software examples:
info.KMtronic.com/LAN-Relays.html
